Product Description
CABINET CONSTRUCTION
- 27" Extended Hood Clearance
- Advanced Touchscreen Display intuitive condition alerts, with multi-lingual user-friendly cleaning and operational guidance
- Enhanced Visual On-Board Diagnostics quickly identify machine faults for rapid resolution and less downtime
- Energy Saving Programmable Sleep Mode heaters power down after user determined period of inactivity
- Rinse Sentry extends wash cycle until booster reaches optimal sanitization temperature before final rinsing process
- 60 Racks Per Hour
- 0.73 Gallons Per Rack
- Factory Authorized Startup
- Field Convertible Electrical ability to convert from three phase to single phase incoming power
- Automated Delime Function customizable alert intervals based on site water quality
- Field Convertible Feed Orientation configurable for front load, corner installation, and pass through
- NSF Dual Rated conforms to nsf standards for stationary rack dish machine and pot and pan machine
- Auto Start machine automatically starts selected wash cycle when door is closed
- High Efficiency 2 HP Wash Pump
- Automatic Drain Valve heavy duty, gear driven full port ball valve stainless and brass construction
- Vent Fan, Detergent, And Rinse Aid Signal Provided
- Four User Selectable Wash Cycles users can select 1, 2, 4, and 6 minute wash cycles depending on soil load
- Cycle Counter records number of cycles machine has run since installation
- ENERGY STAR® Certified
Limited Warranty: 1 Year Parts & Labor
- Built-in detergent and rinse aid pumps
- Drain water tampering Kit (mounted)

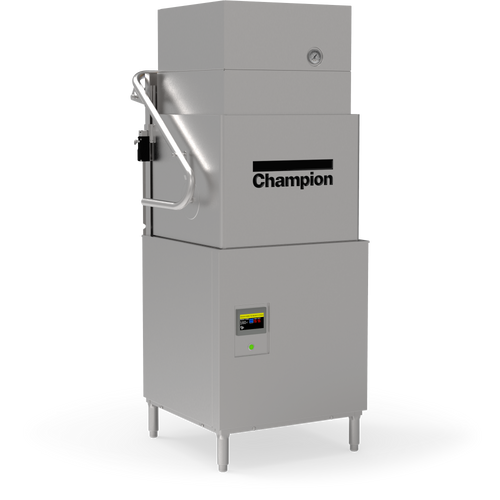

- Ventless/Heat Recovery/Condesnsate Removal Option
- Racks (Peg, Flat, Sheetpan)
- Corner operation splash baffle
- Built-In booster configured to ensure 180° rinse
- Water hammer kit (unmounted)
- Pumped drain
- Dual point electrical connection
- Door interlock
Product Videos
Custom Field

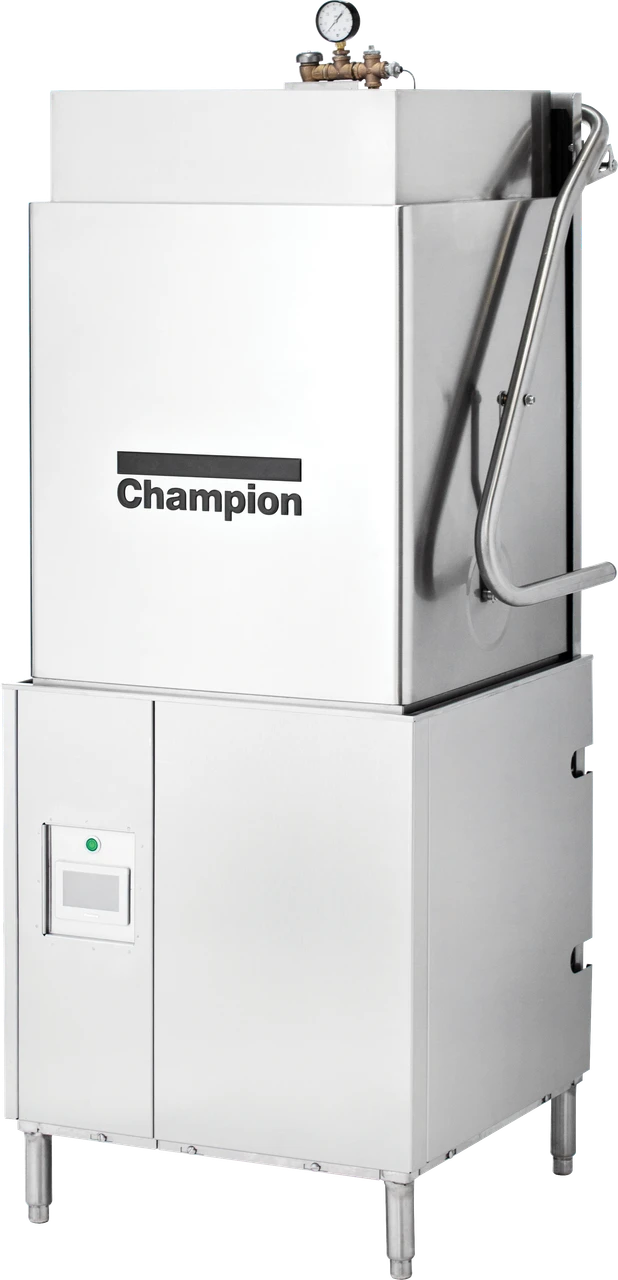

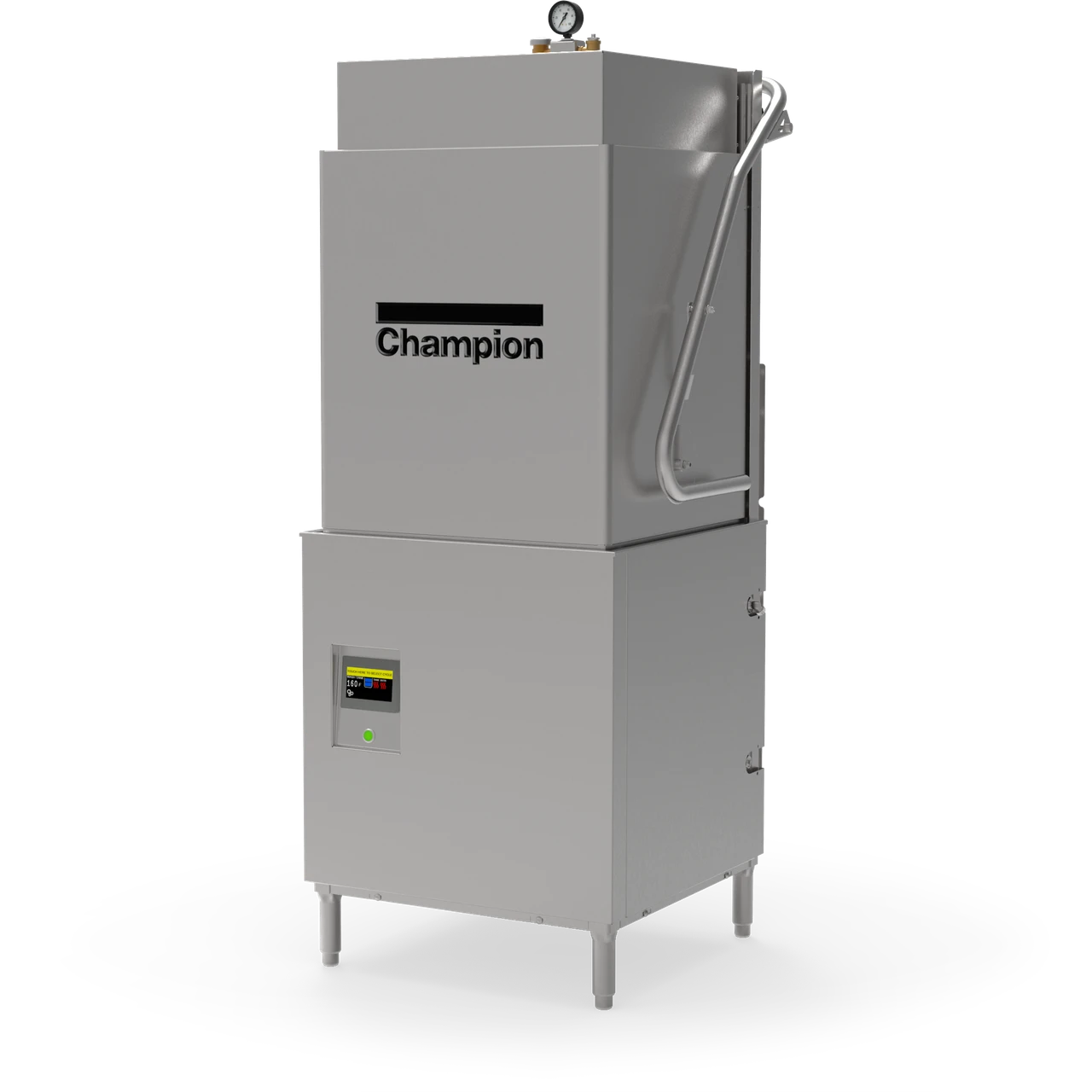

Model # DH6000T
Type Tall
Exterior Dimensions 75-1/8" H x 21-3/8" W x 24-3/4" D
Recommended Use Establishments up to 75 seats
Field Convertible 3 phase to 1 phase - corner and pass through installations
Remote System Access Optional Direct Link+
Extended Height Yes
NSF Dual Rated Dish Machine and Pot & Pan Machine
Temperature High Temp
Capacity per Hour 60 racks (2HP Motor)
Voltage 208-480
Energy Star Certified Yes
Resource - PDF - Spec Sheet https://store-txp4k4lqe2.mybigcommerce.com/content/spec-sheets/Door-Type/DH6000T.pdf
Resource - PDF - Manual https://store-txp4k4lqe2.mybigcommerce.com/content/current-production-manuals/Door-Type/DH6000_M2.5 INSTALL_118066.pdf
Resource - PDF - Operation Guide https://store-txp4k4lqe2.mybigcommerce.com/content/cleaning-operation-guides/Door-Type/DH6000_M2.5_OPS_CLEAN_MAINT_118095.pdf
Resource - PDF - Cleaning Guide https://store-txp4k4lqe2.mybigcommerce.com/content/cleaning-operation-guides/Door-Type/DH6000_WALL_CLEAN_118095.pdf
Resource - PDF - Parts Manual https://store-txp4k4lqe2.mybigcommerce.com/content/current-production-manuals/Door-Type/DH6000_M2.5_PARTS 118065.pdf
Resource - PDF - Drain Tempering Kit https://store-txp4k4lqe2.mybigcommerce.com/content/cleaning-operation-guides/Door-Type/Kit_117084_DWT_Install_117095.pdf
Additional Information Limited Warranty: 1 Year Parts & Labor
Resource - Revit https://store-txp4k4lqe2.mybigcommerce.com/content/CAD-Revit/Door-Type/DH6000T/dh6000t_208_60_1.rfa
Resource - Auto CAD - Front https://store-txp4k4lqe2.mybigcommerce.com/content/CAD-Revit/Door-Type/DH6000T/cir002e.dwg
Resource - Auto CAD - Plan https://store-txp4k4lqe2.mybigcommerce.com/content/CAD-Revit/Door-Type/DH6000T/cir002p.dwg
Resource - Auto CAD - Side https://store-txp4k4lqe2.mybigcommerce.com/content/CAD-Revit/Door-Type/DH6000T/cir002s.dwg
Resource - PDF - DirectLink https://store-txp4k4lqe2.mybigcommerce.com/content/pdf-files/DirectLink.pdf
